MDM CF编写手册

发表于 更新于 分类于 ， ， 本文字数： 76k 阅读时长 ≈ 1:24

配置信息表

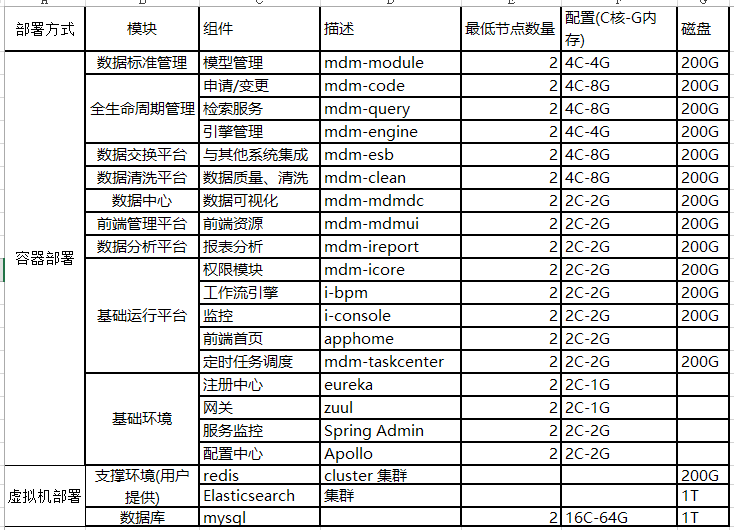

官方配置信息表

MDM提供启动命令

点击展开
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
harbor=registry.cn-hangzhou.aliyuncs.com
IMAGE_VERSION=9.0.17.1
APOLLO_ADDR=172.16.30.43:3306
ZUUL_OR_GATEWAY=172.16.30.155:8080

export LANG="en_US.UTF-8"

echo "====== Stoping Docker Containner... ======"
echo "appmdmdc|appreport|appquery|appcode|apptask|appmodule|appbpm|appesb|appcore|appconsole|appmdmui|appengine|appclean|apphome|appadmin|appzuul|appeureka"
#docker stop $(docker ps -a -q)
docker ps | grep -E "(appmdmdc|appreport|appquery|appcode|apptimer|apptask|appmodule|appbpm|appesb|appcore|appconsole|appmdmui|appengine|appclean|apphome|appadmin|appzuul|appeureka)" | awk '{print $1}' | uniq | xargs -I {} docker stop {}

echo "====== Removing Dokcer Containner ... ======"
#docker rm $(docker ps -a -q)
docker ps -a | grep -E "(appmdmdc|appreport|appquery|appcode|apptimer|apptask|appmodule|appbpm|appesb|appcore|appconsole|appmdmui|appengine|appclean|apphome|appadmin|appzuul|appeureka)" | awk '{print $1}' | uniq | xargs -I {} docker rm -f {}

echo "=== Start Docker appeureka... ==="
docker run -it -d -p 8761:8761 --name=appeureka --privileged \
-e JAVA_XMS=1024m \
-e JAVA_XMX=2048m \
-m 4096m \
$harbor/sw/appeureka:$IMAGE_VERSION

sleep 30s

echo "=== Start Docker appzuul... ==="
docker run -it -d -p 8080:8080 --name=appzuul --privileged \
-e apollo.meta=http://$APOLLO_ADDR \
-e ENV=DEV \
-e apollo.bootstrap.namespaces=application,MySQL27Conf \
-e JAVA_XMS=1024m \
-e JAVA_XMX=2048m \
-v /home/mdm/app/logs:/home/mdm/app/logs \
-m 4096m \
$harbor/sw/appzuul:$IMAGE_VERSION

sleep 30s

echo "=== Start Docker apphome... ==="
docker run -it -d -p 80:80 --name=apphome --privileged \
-e APP_ZUUL_HOST="$ZUUL_OR_GATEWAY" \
-m 2048m \
$harbor/sw/apphome:$IMAGE_VERSION

sleep 30s

echo "=== Start Docker appcore...  ==="
docker run -it -d -p 7001:7001 --name=appcore --privileged \
-e apollo.meta=http://$APOLLO_ADDR \
-e ENV=DEV \
-e apollo.bootstrap.namespaces=application,MySQL27Conf \
-e JAVA_XMS=2048m \
-e JAVA_XMX=4096m \
-e ENV_MQ=8813 \
-v /home/mdm/app/logs:/home/mdm/app/logs \
-m 5120m \
$harbor/sw/appcore:$IMAGE_VERSION

sleep 30s

echo "=== Start Docker appbpm... ==="
docker run -it -d -p 7002:7002 --name=appbpm --privileged \
-e apollo.meta=http://$APOLLO_ADDR \
-e ENV=DEV \
-e apollo.bootstrap.namespaces=application,MySQL27Conf \
-e JAVA_XMS=2048m \
-e JAVA_XMX=4096m \
-e ENV_MQ=8813 \
-v /home/mdm/app/logs:/home/mdm/app/logs \
-m 5120m \
$harbor/sw/appbpm:$IMAGE_VERSION

sleep 30s

echo "=== Start Docker appengine... ==="
docker run -it -d -p 7004:7004 \
-e apollo.meta=http://$APOLLO_ADDR --name=appengine --privileged \
-e ENV=DEV \
-e apollo.bootstrap.namespaces=application,MySQL27Conf \
-e JAVA_XMS=2048m \
-e JAVA_XMX=4096m \
-e ENV_MQ=8813 \
-v /home/mdm/app/logs:/home/mdm/app/logs \
-m 5120m \
$harbor/sw/appengine:$IMAGE_VERSION

sleep 30s
echo "=== Start Docker appmdmui... ==="
docker run -it -d -p 7000:7000 --name=appmdmui --privileged \
-e apollo.meta=http://$APOLLO_ADDR \
-e ENV=DEV \
-e apollo.bootstrap.namespaces=application,MySQL27Conf \
-e JAVA_XMS=2048m \
-e JAVA_XMX=4096m \
-e ENV_MQ=8813 \
-v /home/mdm/app/logs:/home/mdm/app/logs \
-m 5120m \
$harbor/sw/appmdmui:$IMAGE_VERSION

sleep 30s
echo "=== Start Docker appmodule... ==="
docker run -it -d -p 7005:7005 --name=appmodule --privileged \
-e apollo.meta=http://$APOLLO_ADDR \
-e ENV=DEV \
-e apollo.bootstrap.namespaces=application,MySQL27Conf \
-e JAVA_XMS=2048m \
-e JAVA_XMX=4096m \
-e ENV_MQ=8813 \
-v /home/mdm/app/logs:/home/mdm/app/logs \
-m 5120m \
$harbor/sw/appmodule:$IMAGE_VERSION

sleep 30s
echo "=== Start Docker appcode... ==="
docker run -it -d -p 7006:7006 --name=appcode --privileged \
-e apollo.meta=http://$APOLLO_ADDR \
-e ENV=DEV \
-e apollo.bootstrap.namespaces=application,MySQL27Conf \
-e JAVA_XMS=4096m \
-e JAVA_XMX=5120m \
-e ENV_MQ=8813 \
-v /home/mdm/app/logs:/home/mdm/app/logs \
-m 6144m \
$harbor/sw/appcode:$IMAGE_VERSION


sleep 30s
echo "=== Start Docker appquery... ==="
docker run -it -d -p 7007:7007 --name=appquery --privileged \
-e apollo.meta=http://$APOLLO_ADDR \
-e ENV=DEV \
-e apollo.bootstrap.namespaces=application,MySQL27Conf \
-e JAVA_XMS=4096m \
-e JAVA_XMX=5120m \
-e ENV_MQ=8813 \
-v /home/mdm/app/logs:/home/mdm/app/logs \
-m 6144m \
$harbor/sw/appquery:$IMAGE_VERSION

sleep 30s
echo "=== Start Docker appesb...  ==="
docker run -it -d -p 7009:7009 --name=appesb --privileged \
-e apollo.meta=http://$APOLLO_ADDR \
-e ENV=DEV \
-e apollo.bootstrap.namespaces=application,MySQL27Conf \
-e JAVA_XMS=4096m \
-e JAVA_XMX=5120m \
-e ENV_MQ=8813 \
-v /home/mdm/app/logs:/home/mdm/app/logs \
-m 6144m \
$harbor/sw/appesb:$IMAGE_VERSION

sleep 30s
echo "=== Start Docker appmdmdc... ==="
docker run -it -d -p 7010:7010 --name=appmdmdc --privileged \
-e apollo.meta=http://$APOLLO_ADDR \
-e ENV=DEV \
-e apollo.bootstrap.namespaces=application,MySQL27Conf \
-e JAVA_XMS=1024m \
-e JAVA_XMX=2048m \
-e ENV_MQ=8813 \
-v /home/mdm/app/logs:/home/mdm/app/logs \
-m 3072m \
$harbor/sw/appmdmdc:$IMAGE_VERSION

sleep 30s
echo "=== Start Docker appadmin... ==="
docker run -it -d -p 8771:8771 --name=appadmin --privileged \
-e apollo.meta=http://$APOLLO_ADDR \
-e ENV=DEV \
-e apollo.bootstrap.namespaces=application,MySQL27Conf \
-e JAVA_XMS=1024m \
-e JAVA_XMX=2048m \
-v /home/mdm/app/logs:/home/mdm/app/logs \
-m 3072m \
$harbor/sw/appadmin:$IMAGE_VERSION

sleep 30s
echo "=== Start Docker appconsole... ==="
docker run -it -d -p 7003:7003 --name=appconsole --privileged \
-e apollo.meta=http://$APOLLO_ADDR \
-e ENV=DEV \
-e apollo.bootstrap.namespaces=application,MySQL27Conf \
-e JAVA_XMS=1024m \
-e JAVA_XMX=2048m \
-e ENV_MQ=8813 \
-v /home/mdm/app/logs:/home/mdm/app/logs \
-m 3072m \
$harbor/sw/appconsole:$IMAGE_VERSION

sleep 30s
echo "=== Start Docker appclean... ==="
docker run -it -d -p 7008:7008 --name=appclean --privileged \
-e apollo.meta=http://$APOLLO_ADDR \
-e ENV=DEV \
-e apollo.bootstrap.namespaces=application,MySQL27Conf \
-e JAVA_XMS=1024m \
-e JAVA_XMX=2048m \
-e ENV_MQ=8813 \
-v /home/mdm/app/logs:/home/mdm/app/logs \
-m 3072m \
$harbor/sw/appclean:$IMAGE_VERSION

sleep 30s
echo "=== Start Docker apptask... ==="
docker run -it -d -p 5003:5003 --name=apptask --privileged \
-e apollo.meta=http://$APOLLO_ADDR \
-e ENV=DEV \
-e apollo.bootstrap.namespaces=application,MySQL27Conf \
-e JAVA_XMS=256m \
-e JAVA_XMX=1024m \
-e ENV_MQ=8813 \
-v /home/mdm/app/logs:/home/mdm/app/logs \
-m 1536m \
$harbor/sw/apptask:$IMAGE_VERSION

sleep 30s
echo "=== Start Docker appreport... ==="
docker run -it -d -p 7012:7012 --name=appreport --privileged \
-e apollo.meta=http://$APOLLO_ADDR \
-e ENV=DEV \
-e apollo.bootstrap.namespaces=application,MySQL27Conf \
-e JAVA_XMS=1024m \
-e JAVA_XMX=2048m \
-e ENV_MQ=8813 \
-v /home/mdm/app/logs:/home/mdm/app/logs \
-m 3072m \
$harbor/sw/appreport:$IMAGE_VERSION

echo "All Docker Start Finished !"
