DataGrip添加AWS RDS配置

发表于 2022-06-07 更新于 2026-03-10 分类于个人，工具本文字数： 2.9k 阅读时长 ≈ 3 分钟

因为近期(2022-06-01 UTC)AWS的RDS有一个证书轮换的操作, 该操作会导致已有的证书不可用并且针对于特定版本的MySQL数据库(v5.1.38+/v8.0.9+)默认将强制使用SSL/TLS, 并且无法通过过期的证书连接到数据库, 记录一下如何配置DataGrip通过SSL方式连接到AWS RDS数据库

下载证书文件

使用 SSL/TLS 加密与数据库实例的连接 - Amazon Relational Database Service

上面的引用提供了AWS官方的页面地址, 具体可以去翻看, 嫌麻烦的直接点这里下载证书捆绑包

配置DataGrip

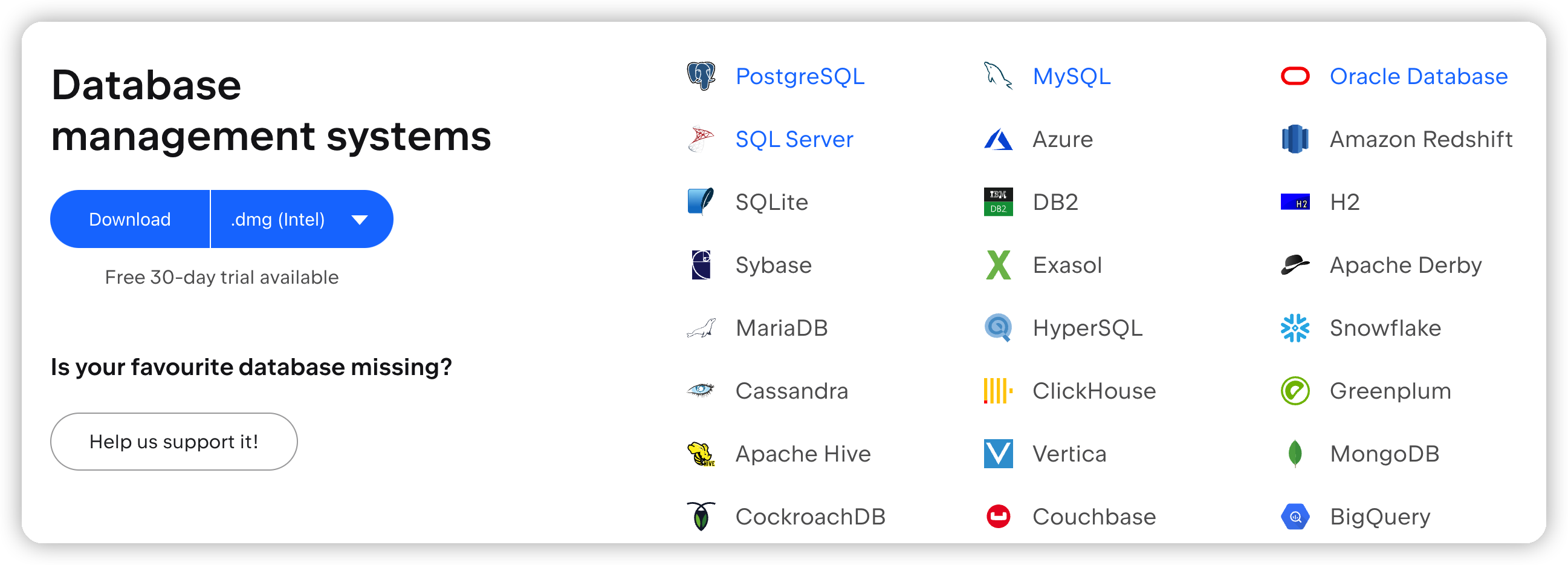

Datagrip与大名鼎鼎的Pycharm均属于Jetbrains公司旗下的产品, 是用连接数据库的一个客户端产品, 支持多种数据库格式, 更多详情可以参见: DataGrip: The Cross-Platform IDE for Databases & SQL by JetBrains

添加MySQL配置

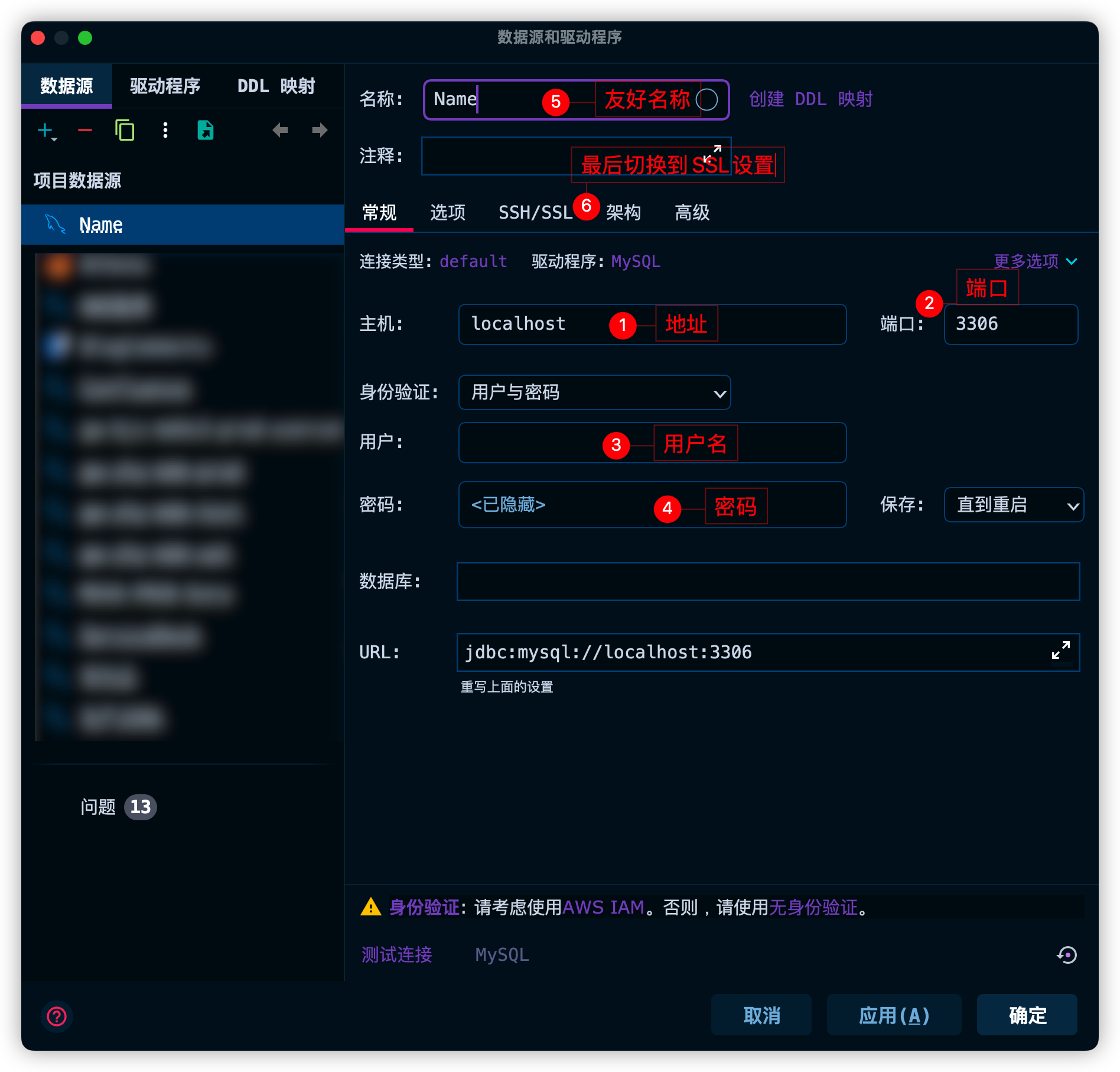

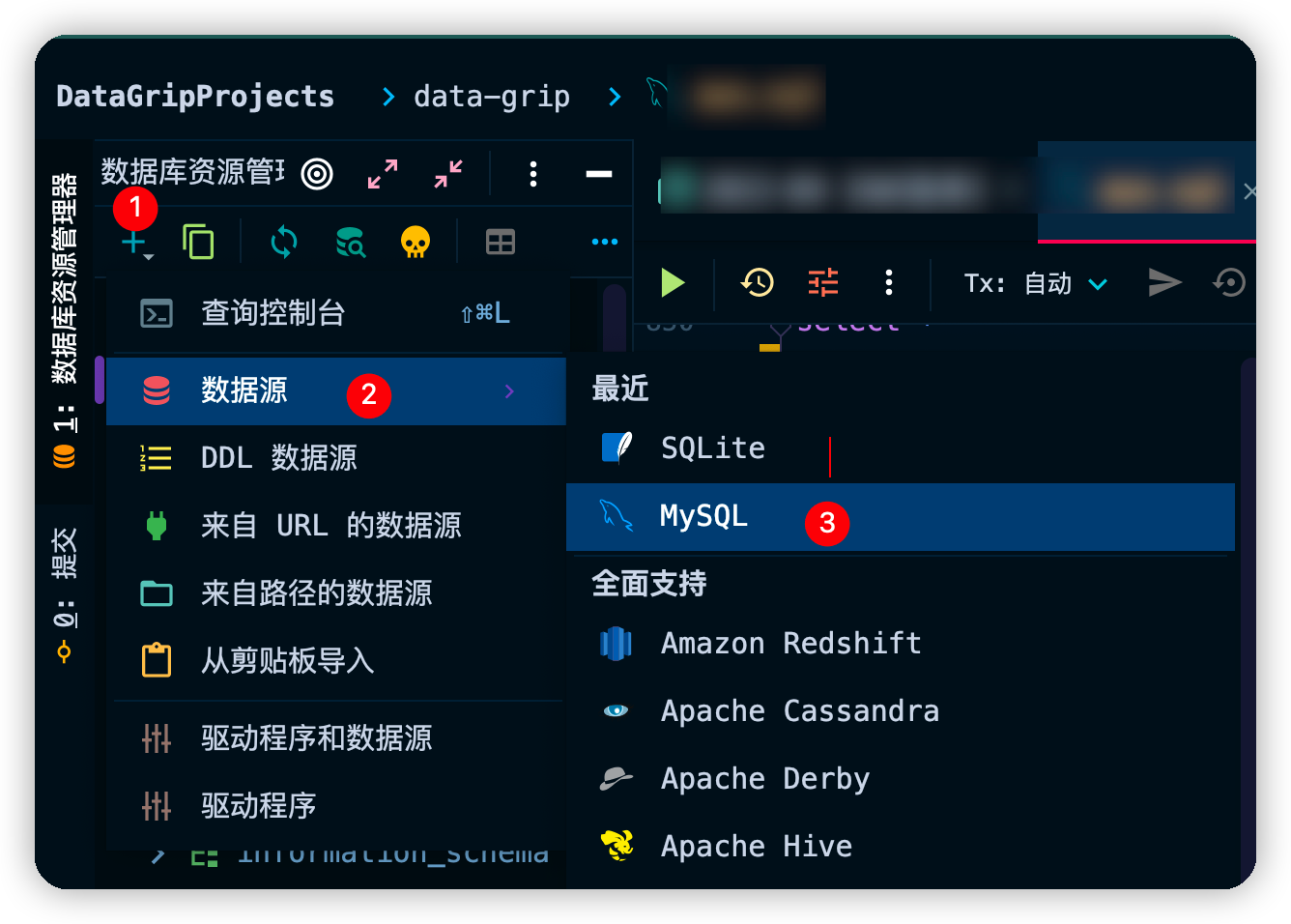

按照以下图示添加

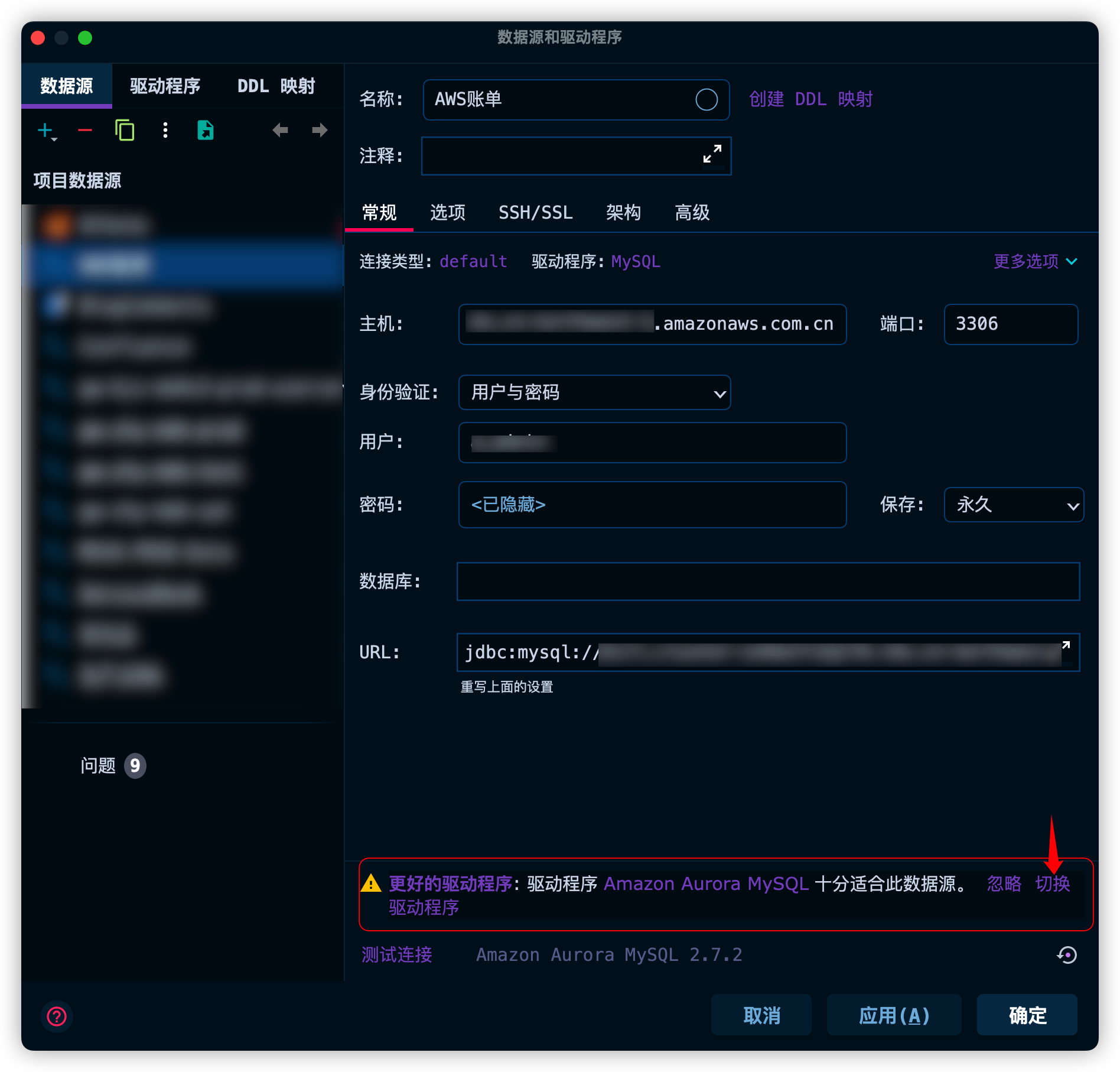

当使用了AWS Aurora MySQL的时候, 可能会提示如下信息, 点击切换驱动程序即可

Q&A

[08S01] No appropriate protocol (protocol is disabled or cipher suites are inappropriate).

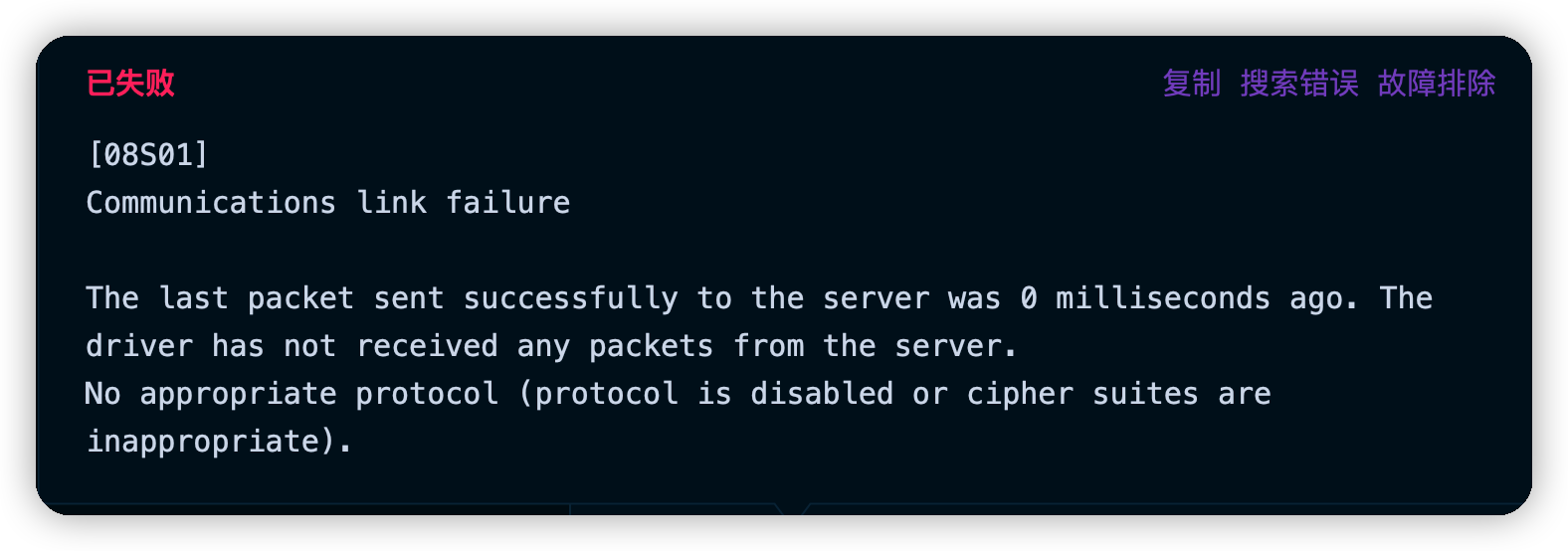

报错信息

Communications link failure

The last packet sent successfully to the server was 0 milliseconds ago. The driver has not received any packets from the server.

No appropriate protocol (protocol is disabled or cipher suites are inappropriate).

参考文档

[08S01]问题Communications link failure... No appropriate protocol - 简书

mysql - How to fix " [08S01] Communications link failure The last packet sent successfully to the server was 0 milliseconds ago. " - Stack Overflow

解决方法

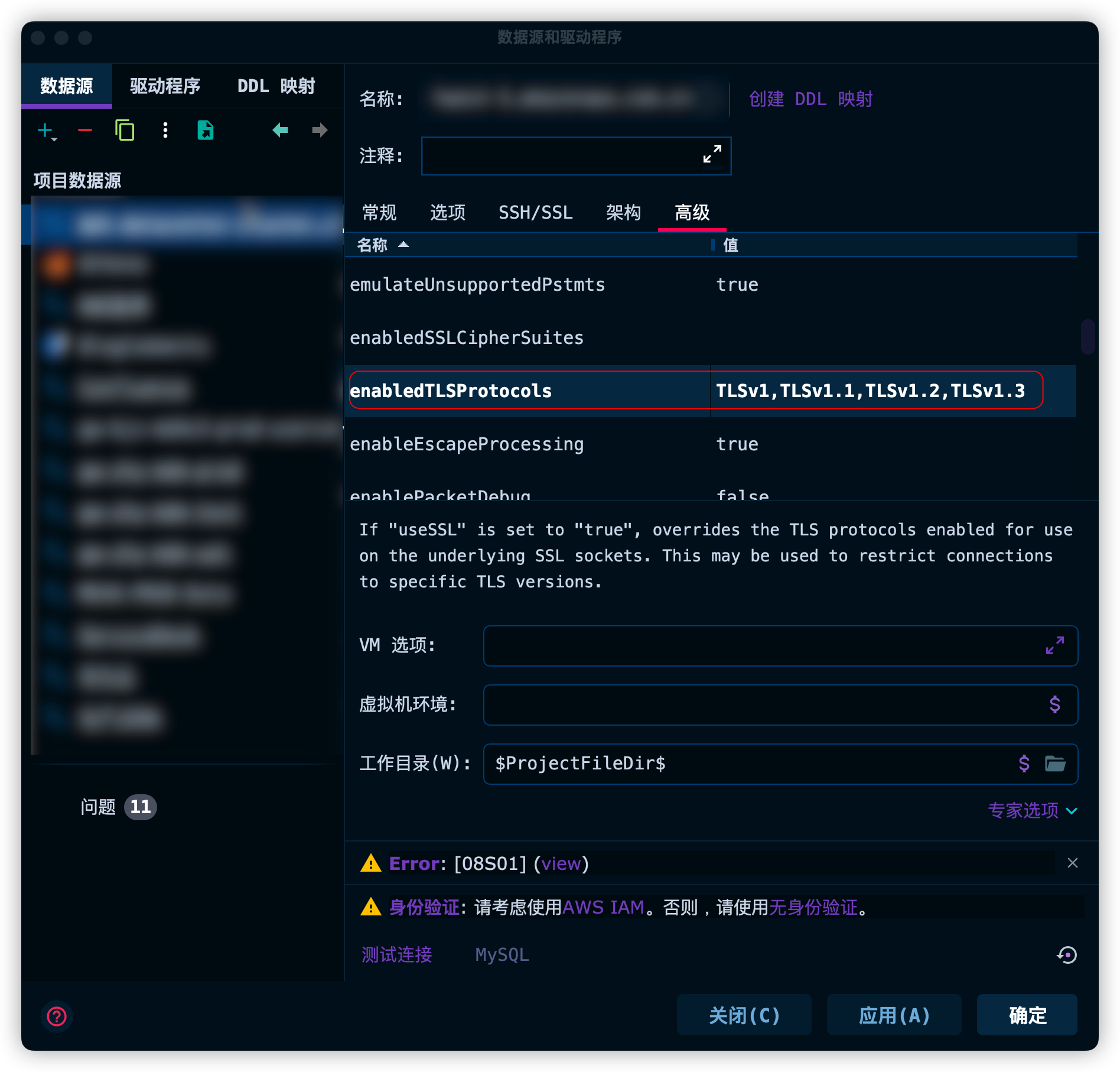

需要在高级(Advanced)找到enabledTLSProtocols并配置为TLSv1,TLSv1.1,TLSv1.2,TLSv1.3方可生效

[08S01] The server selected protocol version TLS10 is not accepted by client preferences [TLS13, TLS12].

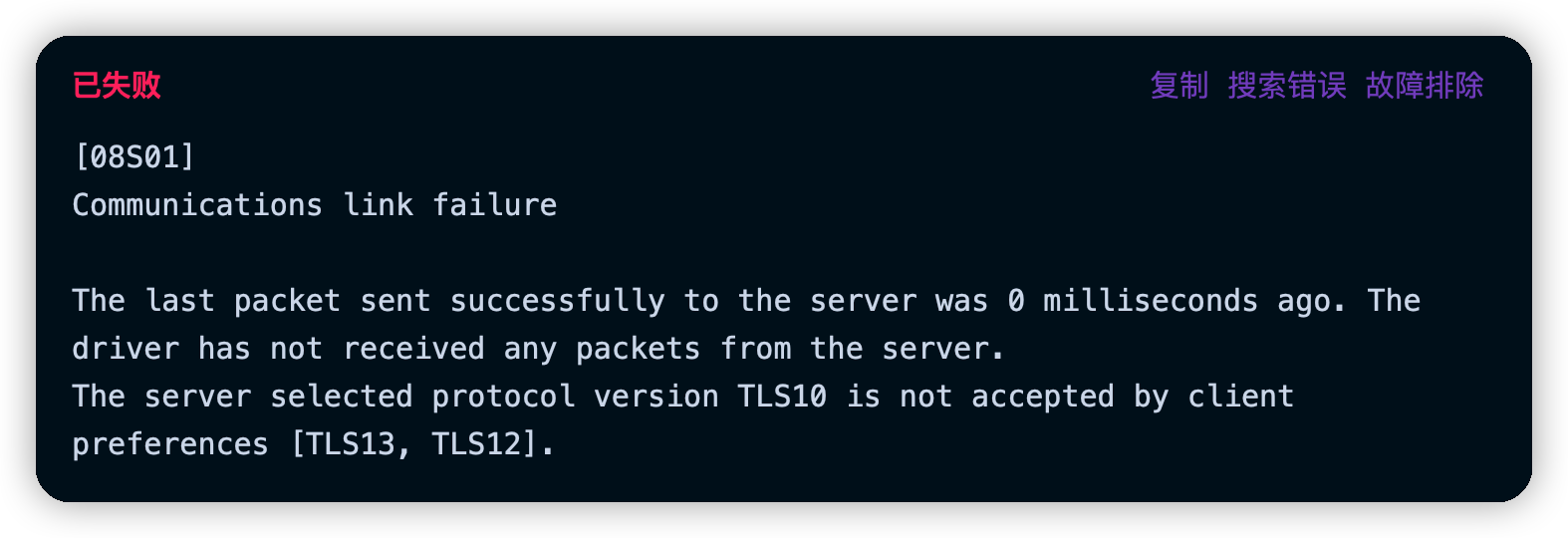

报错信息

Communications link failure

The last packet sent successfully to the server was 0 milliseconds ago. The driver has not received any packets from the server.

The server selected protocol version TLS10 is not accepted by client preferences [TLS13, TLS12].

参考文档

DataGrip连接数据库报SSL协议错误_jianwen1的博客-CSDN博客

Solved: Re: ReadyAPI -> MySql fail: "Communications link f... - SmartBear Community

The server selected protocol version TLS10 is not accepted by client preferences [TLS12] | 锦瑟流年

解决方法

以上参考文档中都提到了一个JAVA属性jdk.tls.disabledAlgorithms, 找到该属性并删除TLS1.0和TLS1.1相关内容即可, 或添加自定义VM参数覆盖设置

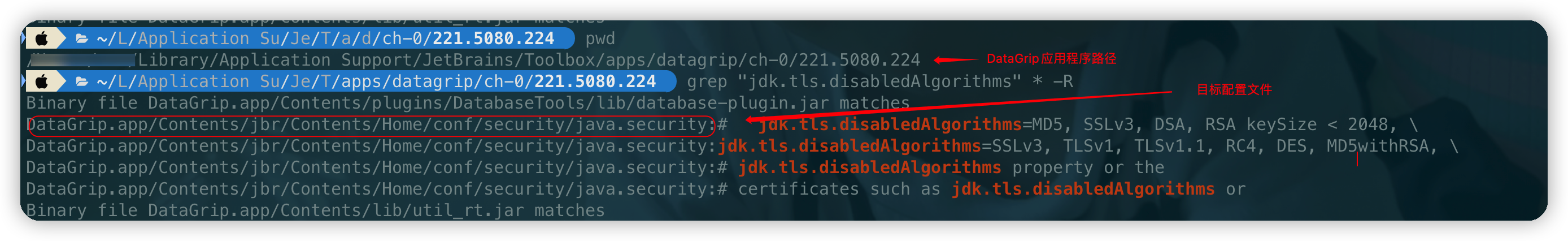

通过搜索找到如下内容:

# Example:
#   jdk.tls.disabledAlgorithms=MD5, SSLv3, DSA, RSA keySize < 2048, \
#       rsa_pkcs1_sha1, secp224r1
jdk.tls.disabledAlgorithms=SSLv3, TLSv1, TLSv1.1, RC4, DES, MD5withRSA, \
    DH keySize < 1024, EC keySize < 224, 3DES_EDE_CBC, anon, NULL, \
    include jdk.disabled.namedCurves

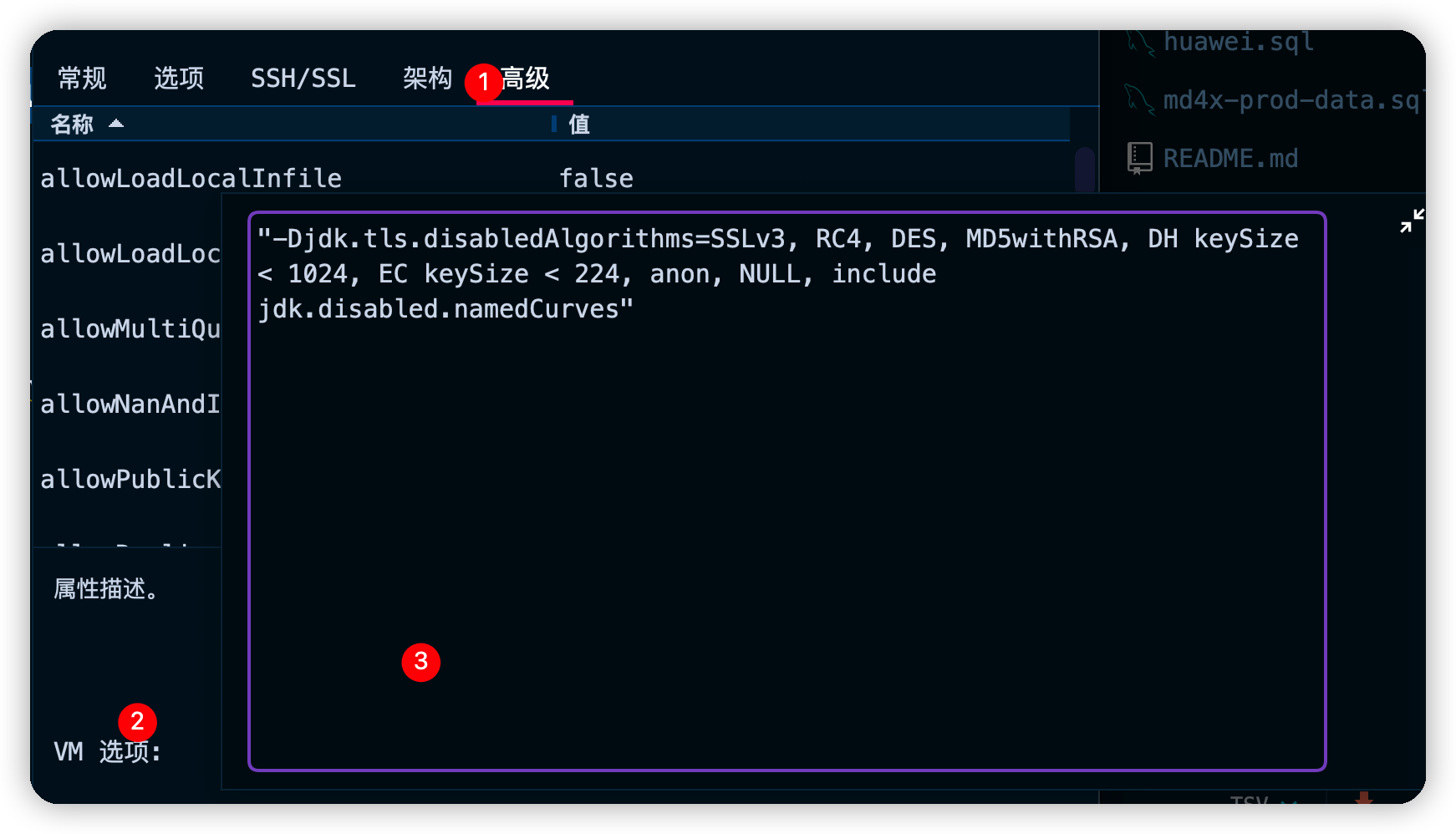

仅修改某个配置项

"-Djdk.tls.disabledAlgorithms=SSLv3, RC4, DES, MD5withRSA, DH keySize < 1024, EC keySize < 224, 3DES_EDE_CBC, anon, NULL, include jdk.disabled.namedCurves"

将👆🏻VM配置添加到高级(Advanced)的VM选项中即可生效
全局设置

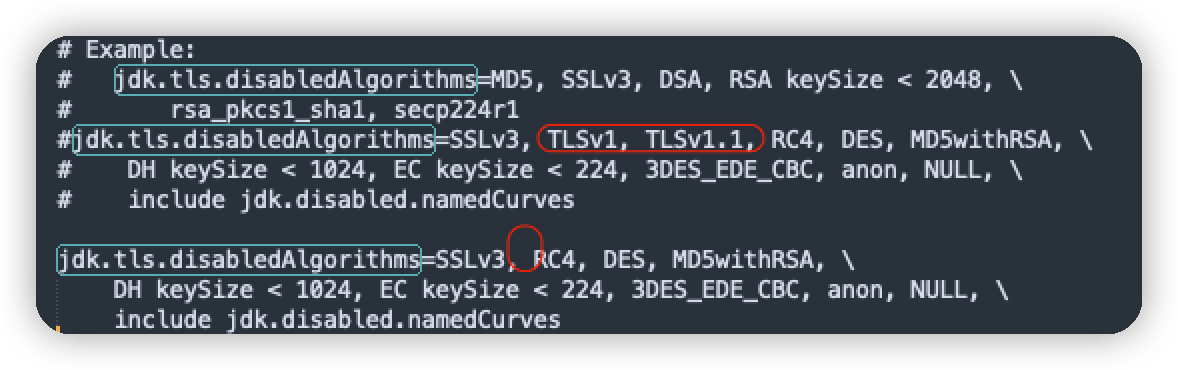

打开~/Library/Application Support/JetBrains/Toolbox/apps/datagrip/ch-0/221.5080.224/DataGrip.app/Contents/jbr/Contents/Home/conf/security/java.security文件, 按照下图修改配置

重启DataGrip生效

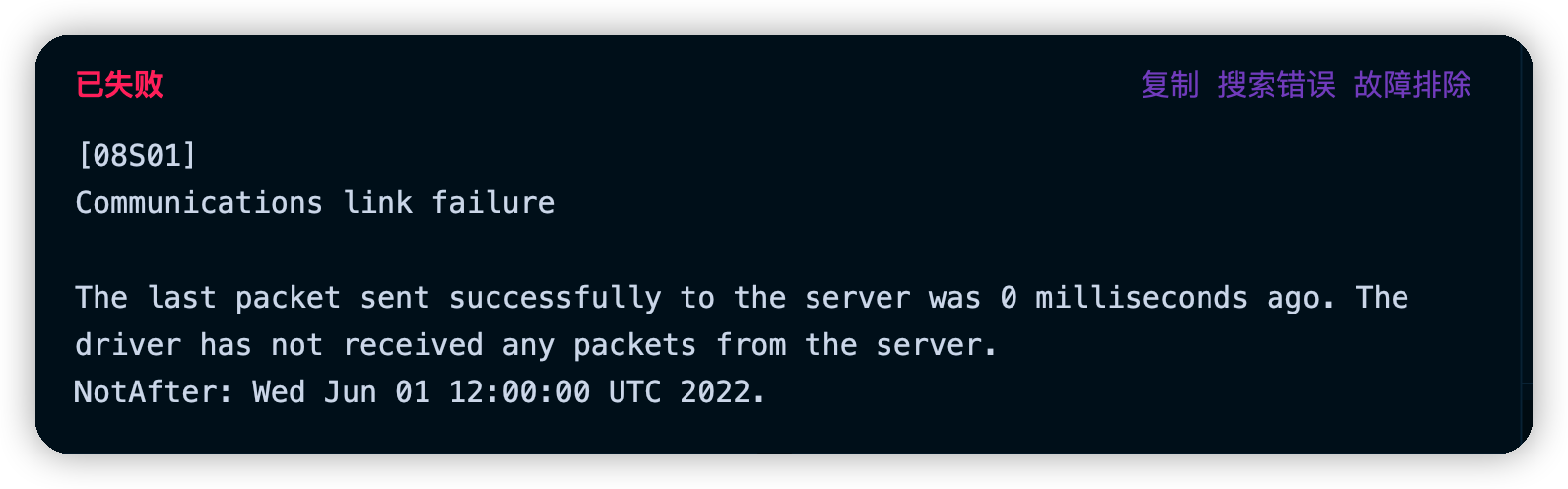

[08S01] NotAfter: Wed Jun 01 12:00:00 UTC 2022.

报错信息

[08S01] Communications link failure

The last packet sent successfully to the server was 0 milliseconds ago. The driver has not received any packets from the server.

NotAfter: Wed Jun 01 12:00:00 UTC 2022.

参考文档

ssl - 'java.security.cert.CertificateExpiredException: NotAfter' upon connecting secure web socket - Stack Overflow

该问题是由于证书过期导致

关于SSL通用workaround

参考文档

idea连接mysql报错： No appropriate protocol (protocol is disabled or cipher suites are inappropriate（已解决）_小诺大人的博客-CSDN博客

在JDBC连接后添加?useSSL=false参数, 如: jdbc:mysql://localhost:3306/test?useSSL=false
